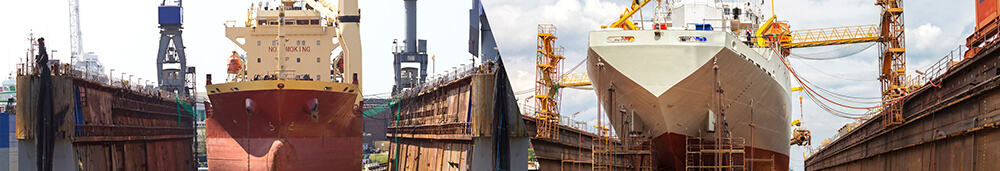

Shipbuilding

SOREX WELDING provides electrodes and wire with low fume, suitable for zinc primer, anti-cracks, and sound impact toughness at low temperature. To meet shipbuilding vessel demand, SOREX also approved by various naval classification certificates (ABS, BV, CCS, CR, DNV-GL, KR, LR, NK, RINA).

Cases

Engineering Cases	Products
CSBC-WM14000TEU series vessel	SFC-71
CSBC-Singapore Semi-submersible ship	SFC-71

View：

SL-58

Model : SL-58

490N/mm2級高張力鋼SMAW銲接
AWS A5.1 E7018
JIS Z3211 E4918
EN ISO 2560-A E 42 3 B 3 2
GB T5117 E5018

SLH-58

Model : SLH-58

490N/mm2級高張力鋼SMAW銲接
AWS A5.1 E7018-1 H4
JIS Z3211 E4918
EN ISO 2560-A E 46 4 B 3 2 H5
GB T5117 E5018

SS-308L

Model : SS-308L

不銹鋼SMAW銲接
AWS A5.4 E308L-16
JIS Z3221 ES308L-16
EN ISO 3581-A E 19 9 L R 1 2
GB T983 E308L-16

SS-309L

Model : SS-309L

不銹鋼SMAW銲接
AWS A5.4 E309L-16
JIS Z3221 ES309L-16
EN ISO 3581-A E 23 12 L R 1 2
GB T983 E309L-16

SS-316L

Model : SS-316L

不銹鋼SMAW銲接
AWS A5.4 E316L-16
JIS Z3221 ES316L-16
EN ISO 3581-A E 19 12 3 L R 1 2
GB T983 E316L-16

SFC-75

Model : SFC-75

490N/mm2級高張力鋼FCAW銲接
AWS A5.20 E71T-5C/5M
AWS A5.36 E71T5-C1/M21 A2-CS1
JIS Z3313 T 49 3 T5-1 C/M A-U
EN ISO 17632-A T42 3 B C1/M21 1 H5
GB T10045 E501T-5/5M

SFC-70C

Model : SFC-70C

490N/mm2級高張力鋼FCAW銲接
AWS A5.20 E70T-1C
AWS A5.36 E70T1-C1A0-CS1
JIS Z3313 T 49 2 T15-0 C A-U
EN ISO 17632-A T42 2 P C1 3 H5
GB T10045 E500T-1

SFC-308L

Model : SFC-308L

不銹鋼FCAW銲接
AWS A5.22 E308LT1-1/-4
JIS Z3323 TS308L-FC1
EN ISO 17633-A T 19 9 L P C1/M21 2
GB T17853 E308LT1-1

SFC-309MoL

Model : SFC-309MoL

不銹鋼FCAW銲接
AWS A5.22 E309LMoT1-1/-4
JIS Z3323 TS309LMo-FC1
EN ISO 17633-A T 23 12 2 L P C1/M21 2
GB T17853 E309LMoT1-1

SFC-316L

Model : SFC-316L

不銹鋼FCAW銲接
AWS A5.22 E316LT1-1/-4
JIS Z3323 TS316L-FC1
EN ISO 17633-A T 19 12 3 L P C1/M21 2
GB T17853 E316LT1-1

SFC-317L

Model : SFC-317L

不銹鋼FCAW銲接
AWS A5.22 E317LT1-1/-4
JIS Z3323 TS317L-FC1
EN ISO 17633-A T 19 13 4 L P C1/M21 2
GB T17853 E317LT1-1

SFC-309L

Model : SFC-309L

不銹鋼FCAW銲接
AWS A5.22 E309LT1-1/-4
JIS Z3323 TS309L-FC1
EN ISO 17633-A T 23 12 L P C1/M21 2
GB T17853 E309LT1-1

SFC-2209

Model : SFC-2209

不銹鋼FCAW銲接
AWS A5.22 E2209T1-1/-4
JIS Z3323 TS2209-FC1
EN ISO 17633-A T 22 9 3 N L P C1/M21 2
GB T17853 E2209T1-1

SFC-71J

Model : SFC-71J

490N/mm2級高張力鋼FCAW銲接
AWS A5.20 E71T-1C/M-J
AWS A5.36 E71T1-C1/M21 A4-CS1
JIS Z3313 T 49 4 T1-1 C/M A-U
EN ISO 17632-A T46 4 P C1/M21 1 H5
GB T10045 E501T-1L/1ML

SF-66 x SW-M12K

Model : SF-66 x SW-M12K

490N/mm2級高張力鋼單層、多層SAW銲接
AWS A5.17 F7A4/P4-EM12K
JIS Z3183 S502-H
EN ISO 14171-A S 42 5 FB S2Si
GB T5293 F5A4/P4-H08MnA

SF-65 x SW-M12K

Model : SF-65 x SW-M12K

490N/mm2級高張力鋼單層、多層SAW銲接
AWS A5.17 F7A2-EM12K
JIS Z3183 S502-H
EN ISO 14171-A S 42 3 AB S2Si
GB T5293 F5A3-H08MnA

SMG-6

Model : SMG-6

490N/mm2級高張力鋼MIG銲接
AWS A5.18 ER70S-6
JIS Z3312 G 49 A 3 U C 6
EN ISO 14341-A G 42 3 C1/M21 3Si1
GB T8110 ER50-6
